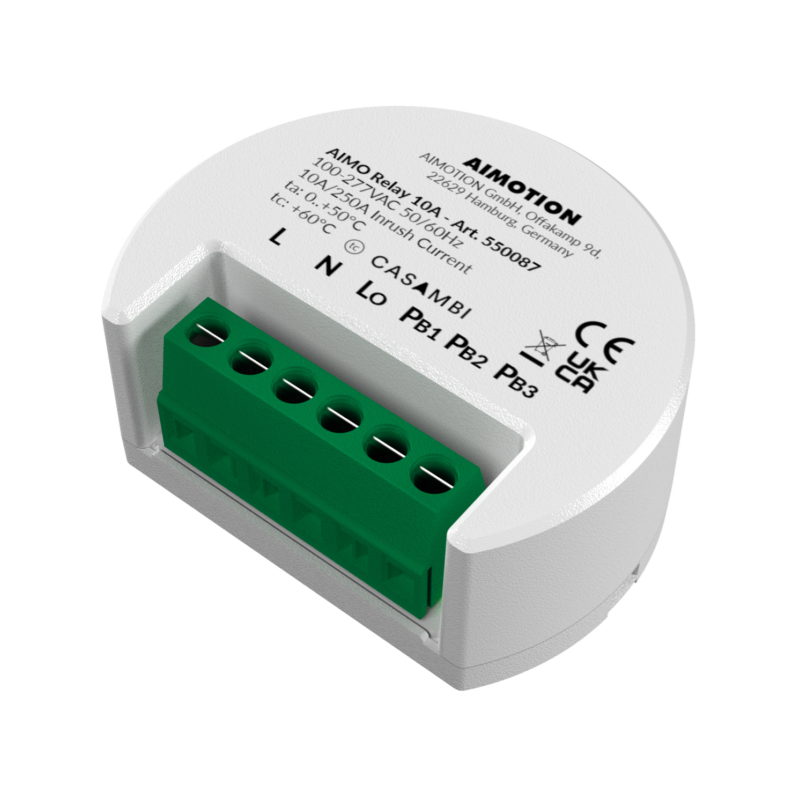

Casambi AIMO Relay 10A
for lights and electrical appliances.
Flexible use: Connect up to 3 additional buttons.
Variants and options
Features
- Selectable operating mode / profiles
- 3x pushbutton connection freely programmable
- Wireless control via app, wall switch and motion detector
- Automatic switching on and off according to time, weekday, date or sunshine
- Group function
- Integration in scenes and animations
- iBeacon can be activated
ITEM NUMBER
- 550087
- AIMO Relay 10A
Technical details
- Operating Voltage
- 120–277 VAC, 50/60 Hz
- Network
- Bluetooth Mesh Technology
- MAX. SWITCHABLE POWER
- 10A (Capacitive, Inductive, Resistive)
- Inrush current
- 250A /1ms, 140A /10ms
- Dimensions
- 52 x 42 x 22 mm
- COMPATIBILTY
- Casambi, Occhio Air
Download
Smart control
Design your individual light, control luminaires and devices with the Casambi app. Switch your scenes via smartphone or wall switch.
Dimming and switching
Infinitely variable brightness control, switching of one or more luminaires and devices.
Create scenes
Create scenarios and retrieve or automate them as needed.
Switching options
Stage atmosphere with the push of a button, motion detector or synchronised to sunrise and sunset times.
