Casambi Pushbutton 8ch CTS2
CTS2 in combination with a GIRA TS2 combines the familiar security and convenience of a permanently installed tactile wall switch for controlling devices in CASAMBI networks.
Programmable LED feedback for each button makes operation very intuitive and possible without a smartphone. The status of Casambi groups, scenes, timers or devices can be visualized via the LED.
Variants and options
- 6 buttons with LED status
- LED status with synchronization function
- Backlight with timer

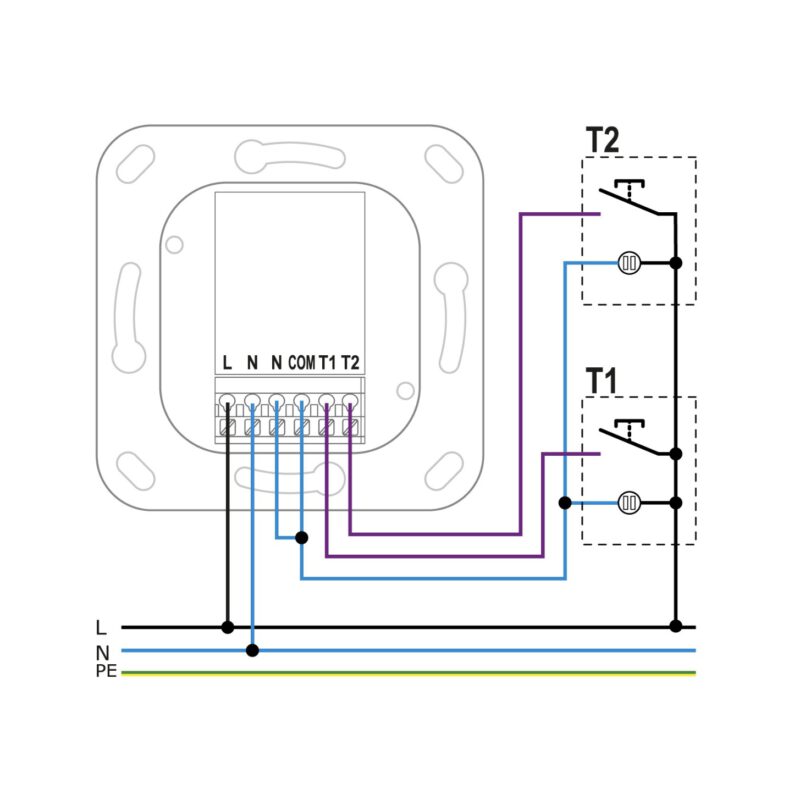

- 2 additional pushbutton inputs
- Individual configuration
- On/off switch
- Infinitely dimmable
- Control of all lights, devices, groups and scenes
- Changing the color temperature
- Resume / start automation
- 1058
- Pushbutton Module 8ch (for Gira Pushbutton)
- 1059

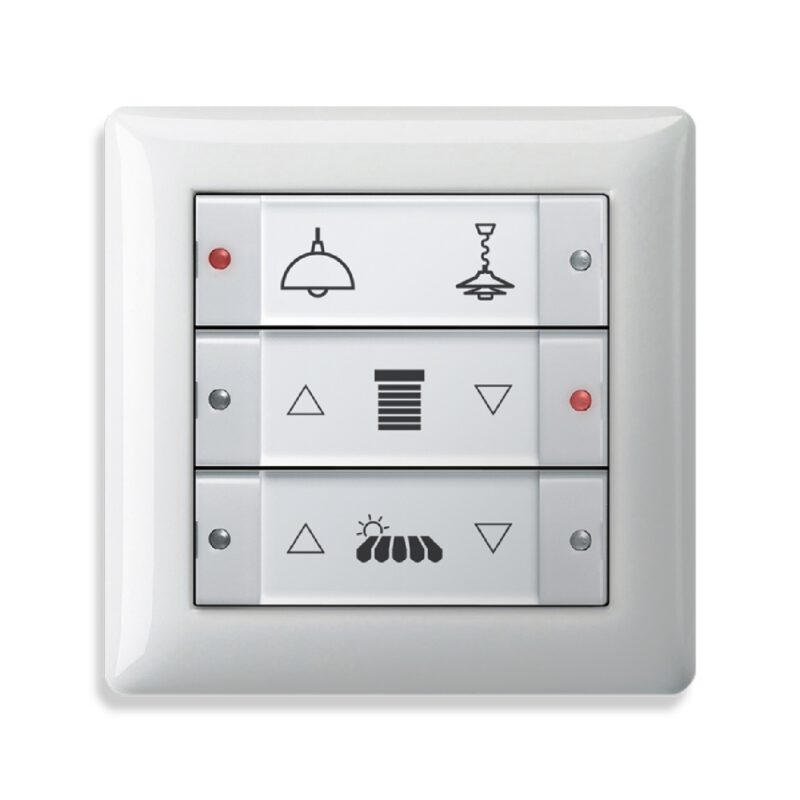

- Gira Pushbutton Sensor 2 (TS2)
- OPERATING VOLTAGE
- 100-250 VAC, 50/60 Hz
- NETWORK
- Bluetooth Mesh Technology
- Installation
- flush-mounted
- DIMENSIONS
- h=32mm, Ø max.=55mm
- COMPATIBILITY
- Casambi, Occhio Air
Smart control
Design your individual light, control luminaires and devices with the Casambi app. Switch your scenes via smartphone or wall switch.
Dimming and switching
Infinitely variable brightness control, switching of one or more luminaires and devices.
Create scenes
Create scenarios and retrieve or automate them as needed.
Switching options
Stage atmosphere with the push of a button, motion detector or synchronised to sunrise and sunset times.
